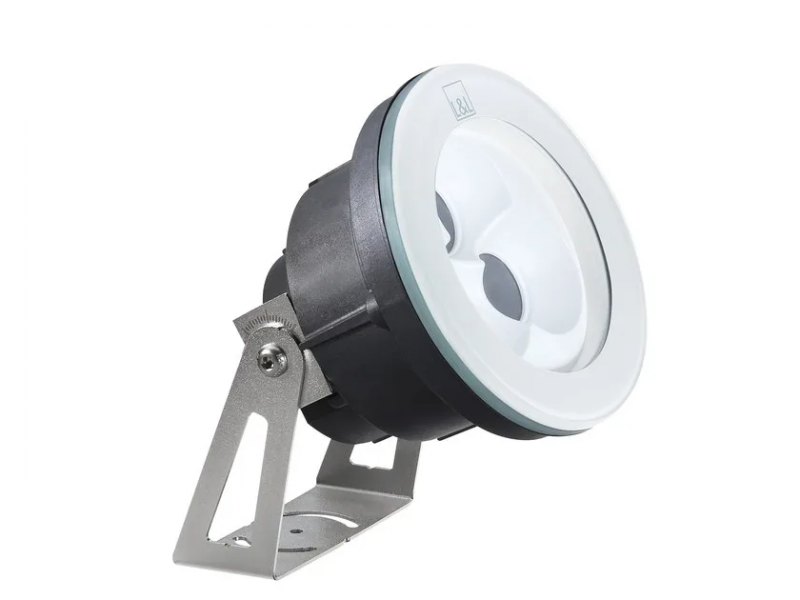

Projector for underwater applications (not suitable for underwater applications in salt water, only suitable for underwater applications)
 surface mounted (wall, floor)
 Power: 20W
 Power supply: 24Vdc
 Lumen output at source: 1522 lm (3000K), RGBW: 884 lm, R: 138 lm G: 259 lm B: 69 lm W: 418 lm (4000K), cyan: 782 lm
 Delivered lumen output: 1078 lm (3000K, 34°), RGBW: 626 lm, R: 97 lm, G: 184 lm, B: 48 lm, W: 297 lm (4000K, 34°), cyan: 552 lm (34°)
 3 power LEDs groups, RGBW: 3 RGBW LEDs groups, Cyan: 3 Cyan LEDs groups
 LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan
 Optics: 22°, 34°, 62°, 31°x64°
 Material: body in thermally conductive plastic, glass cover, bracket in AISI 316L stainless steel
 power supply unit not included
 includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm
 RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
 Ingress protection: IP68
 Impact resistance: IK10
 Protection systems: IPS, NTC
 Operating temperature: 0°C — +45°C (installation underwater)
 Maximum device temperature: 40°C (Ta 25°C)
 Weight: 2470 g
 Dimensions: Ø155x173 mm
 Accessories: WH0402 Honeycomb louvre
