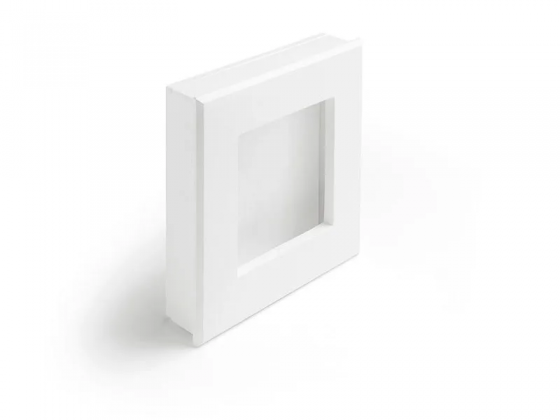

Wall mounted for indoor applications
 surface mounted (wall)
 body in anticorodal aluminium alloy 6060, screen in microprismatic glass
 finishes: pure orange, light ivory, white, capri blue, chrome, reseda green
 36 mid power LEDs
 13W - 230Vac
 built in power supply unit
 total delivered lumens: 985 lm (3000K)
 diffuse optics
 LED colour: white - 2700K, 3000K, 4000K
 ingress protection: IP40
 impact resistance: IK08
 operating temperature: 0°C +45°C
 screen temperature: max 40°C (Ta 25°C)
 Glow Wire Test: 960°
 photobiological safety: risk group 1 in accordance with EN62471:2006
 appliance class: I
 weight 0,80 kg
 dimensions 208x80x29 mm
 accessories: spacer for 15° inclination WD06021 / WD06022 / WD06023 / WD06024 / WD0602B / WD0602C
