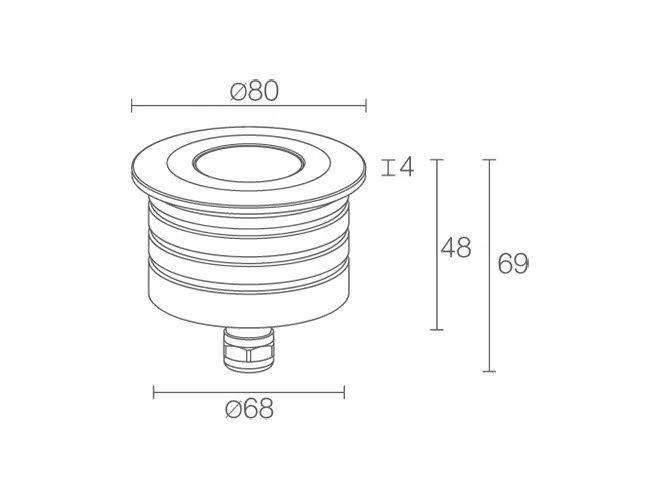

Габаритные размеры
Информация

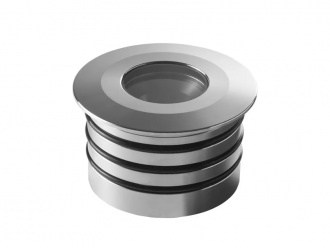

Recessed for underwater applications (suitable for underwater applications in salt water)
recessed (wall, ground), max depth 10 m
Power: 7W, 9W
RGB: max 5W
Power supply: 24Vdc
RGB: max 500mA
Lumen output at source: 683 lm (3000K, 7W), 845 lm (3000K, 9W), RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA)
Delivered lumen output: 463 lm (3000K, 34°, 7W), 602 lm (3000K, 34°, 9W), RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°)
1 high-intensity power LED, RGB: 3 power LEDs, 3 MacAdam steps (white LED colour), 50000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K, RGB
Optics: 11°, 20°, 34°, 45°, 68°, 13°x52°, 21°x42°
Material: body and trim in AISI 316L stainless steel, screen in tempered, transparent extra-clear glass
power supply unit not included
includes 5 m neoprene cable H05RN-F 2x1. 00/1. 00 Ø7. 00 mm, RGB: includes 5 m FEP+RUB cable (equivalent to H05RN-F) 6x0. 50/0. 50 Ø6. 3 mm
Wiring: parallel
RGB: series
Ingress protection: IP68
Impact resistance: IK10
suitable for use in sea water, the 7W version and the RGB version can also be used out of the water
Protection systems: IPS
Operating temperature: -20°C — +45°C (installation outdoors), 0°C — +45°C (installation underwater)
Maximum device temperature: 50°C (Ta 25°C)
Glow wire test: 960°
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: III
Weight: 1150 g
Dimensions: Ø80x69 mm.
