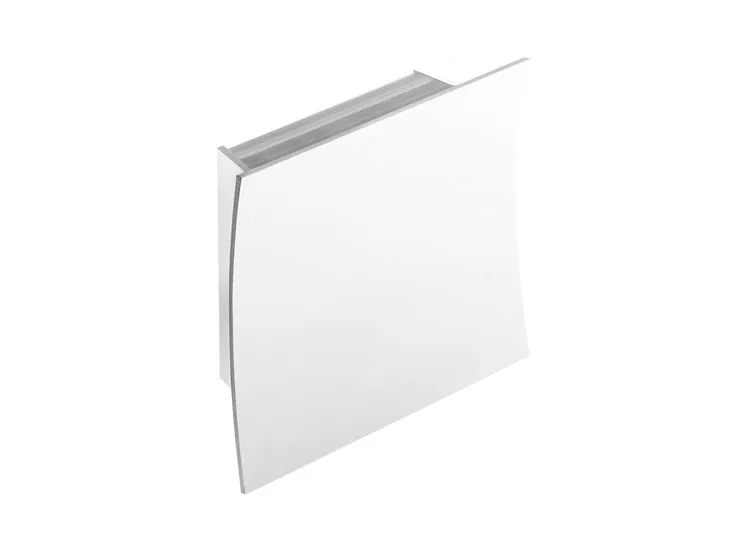

Berica 3.0 is a wall mounted for indoor applications, double beam
 surface mounted (wall)
 Body material: body and cover in anticorodal aluminium
 Finishes: white, matt aluminium grey, antique bronze, antique white, primer.
Electrical characteristics
Power consumption: 8W
 Power supply: 230Vac
 Lumen output at source: 410 lm (3000K) per beam
 Delivered lumen output: 341 lm (3000K, diffuse optics) per beam
 16 mid power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
 LED colour: 2700K, 3000K, 4000K
 Optics: 45°x96°, 59°x90°, asymmetrical, diffuse
 CRI >90
  Ingress protection: IP40
 Appliance class: class III.
