Information

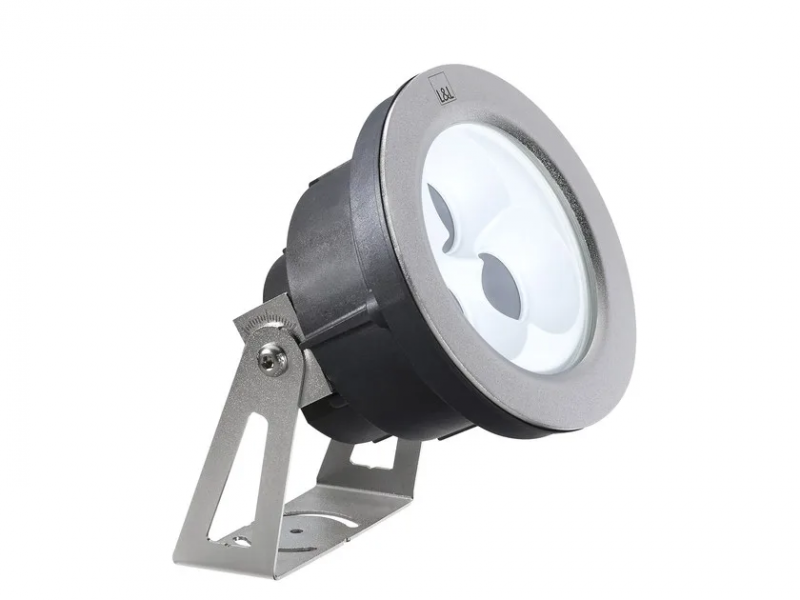

Projector for underwater applications (not suitable for use in salt water)
   surface mounted (wall, ground)
 body in technopolymer
 trim in AISI 316L stainless steel, screen in extra-clear tempered glass
 bracket in AISI 316L stainless steel
 finishes: micro-blasted stainless steel
3 power LEDs groups, RGBW: 3 RGBW LEDs groups, Cyan: 3 Cyan LEDs groups
20W - 24Vdc
includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm
 RGBW-cyan: includes 5 m FEP+PCP cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
delivered lumen output: 1078 lm (3000K, 34°), RGBW: 626 lm, R: 97 lm, G: 184 lm, B: 48 lm, W: 297 lm (4000K, 34°), cyan: 552 lm (34°)
optics: 22°, 34°, 62°, 31°x64°
LED colour: white - 2700K, 3000K, 4000K
 RGBW
 shades of cyan
  ingress protection: IP68
 impact resistance: IK10
 equipped with IPS
 equipped with NTC
 screen temperature: max 40°C (Ta 25°C)
 Glow Wire Test: 960°
 photobiological safety: risk group 1 in accordance with EN62471:2006
 appliance class: III
 weight 2,02 kg
 dimming using a dimmable power supply unit or a dimmer
 accessories: honeycomb louvre WH0402
